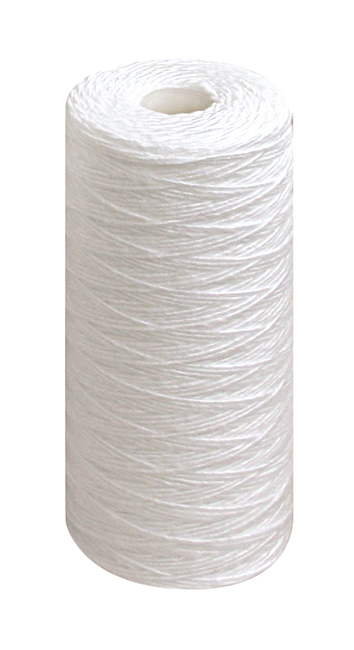

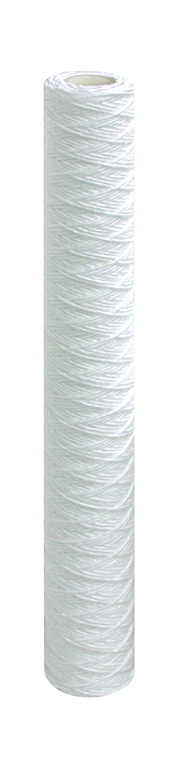

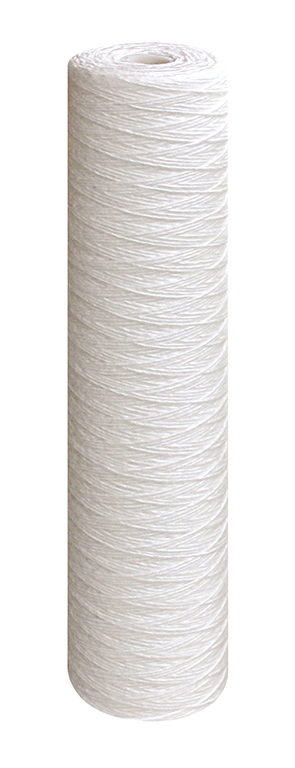

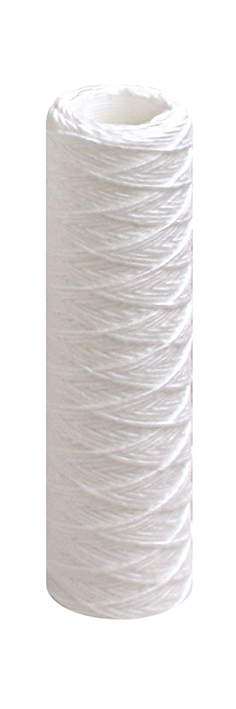

String Wound Filter Cartridge

String Wound Filter Cartridge
String Wound Filter Cartridge

String Wound cartridges are designed to meet the most demanding filtration duties.


String Wound cartridges are manufactured from a variety of carefully selected raw materials.

These are processed into fibers of specific grades using the latest technology. After carding & spinning into roving they are wound into cartridges with carefully controlled micron rating.


From raw materials to finished products we are in control of the quality and

filtration characteristics. They are appreciated due to high dirt holding

capacity and its rugged construction which allows facing different applications

in liquid and gas filtration

  • Product Introduction
  • Package Information

Filter Media:Polypropylene yarn with polypropylene core

                Cotton yarn / Glass fiber yarn with stainless core


Filter rate:1um,5um,10um,25um,,50um,75um,100um


Length:5",10",20",30",40"


Outer/Inner diameter:2.5",4.5"/28mm,30mm,or other sizes as customerized


Operating temperature:<60C



slim10” 50pcs per box,  33cm*33cm*53cm


slim20” 25pcs per box,  33cm*33cm*53cm


BB10”  20pcs per box,   57cm*23cm*53cm


BB20” 10pcs per box,   57cm*23cm*53cm
